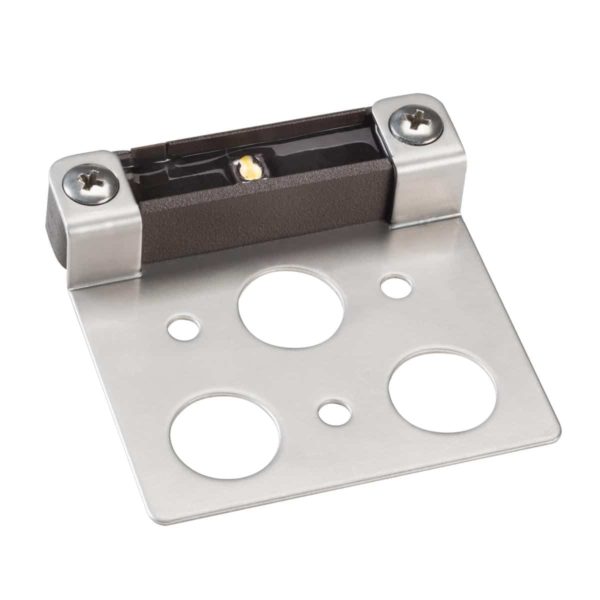

1 LED Strip Light w/ Hardscape Bracket

$66.50 – $80.50

1 LED Fixture with Bracket Low Voltage LED Hardscape Light
SKU: 15744 Categories: ,

Description

LED Landscape Lighting – LED Accent Light – Kichler 15744

1 LED Fixture with Bracket Low Voltage LED Hardscape Light

The Kichler 15744 is a low voltage 1 LED hardscape light that provides illumination for all types of hardscaping.

This small LED hardscape light can be used in a variety of outdoor applications,

  • Retaining walls of all types – new and existing construction
  • Brick or stone columns
  • Under all types of steps, including wood, composite, stone and brick, etc., with and without risers
  • Under deck and chair/hand and fence rails
  • Lips or the undersides of a wide variety of outdoor surfaces
  • Pergolas
  • Outdoor kitchen and bar areas (under lips and toe kicks)
  • Raised beds/planters
  • Boat docks (as permitted by local codes)
  • Customize illumination by mounting farther back, for a scalloped effect, or forward for a more even effect

This fixture comes in 6 different finishes and has the options of warm, pure white, or cool white light output.  Enjoy at least 40,000 hours of use while saving 80% on energy.  Never replace a light bulb again saving time and money.  Kichler is the industry leader in LED landscape lighting.  This Kichler Design Pro LED carries a remarkable 15 year warranty.

SPECIFICATIONS – Kichler 15744 1 LED Fixture with Bracket
Housing
  • Cast Aluminum (AZT- Bronze, GRY- Gray, SD- Sand, WHT – White Finishes)
  • Cast Brass (BBR- Bronzed Brass),
  • Copper Plated Brass (CO – Unfinished Copper)
Finish
  • AZT – Bronze (Marine grade powder coat)
  • BBR – Bronzed Brass
  • CO – Unfinished Copper
  • GRY – Gray (Marine grade powder coat)
  • SD – Sand (Marine grade powder coat)
  • WHT – White (Marine grade powder coat)
Dimensions
  • 3″ Long, Fixture body is .6″ Wide, Total width with bracket is 2.9″
Light Source
  • Integrated LED Chip and Constant Current Driver
LEDs
Life
  • 40,000 Hours L70 (L70 is lumen depreciation of 70% where the eye notices a change in light output).
Warranty
  • 15 year warranty
Color Temperature (CCT)
  • Warm White- 2700K (-280/+0)
  • Pure White- 3000K (-200/+175)
  • Cool White – 4200K (-400/+400)
Color Rendering Index (CRI)
  • 80+ Color rendering index (CRI) is a measure of how accurately an artificial light source displays colors.
  • This fixture has a rating considered “best” in the industry. Source: EnergyStar.gov Light Quality Guide
Optics
  • Radiax™ Optic – Creates a 40° Spread. See photometric data below.
Power Usage
  • 0.19 WATTS (0.28 VA) @ 12 Volt AC input.
  • A Low Voltage Transformer is required.  Multiply fixture VA by the number of fixtures used to determine transformer size.
Operating Voltage Range
  • 9V – 15V AC/DC with no loss or variation of light output due to constant current driver technology.
  • Learn about voltage drop.
Lumens
  • 2700k = 8.4 lumens (44Lm/W)
  • 3000k = 8.6 lumens (45Lm/W)
  • 4200k = 11 lumens (58Lm/W)
Wiring
Included Mounting Accessories
  • Stainless steel masonry bracket and mounting screws
Optional Mounting Accessories
  • 15716SS – 1 LED Accessory Bracket





Additional information

Weight16.00 lbs
DimensionsN/A
COLOR TEMPERATURE

WARM WHITE – 2700K, PURE WHITE – 3000K

FINISH COLOR

ARCHITECTURAL BRONZE TEXTURED (AZT), BRONZED BRASS (BBR), UNFINISHED COPPER (CO), GRAY (GRY), SAND (SD), TEXTURED WHITE (WHT)
